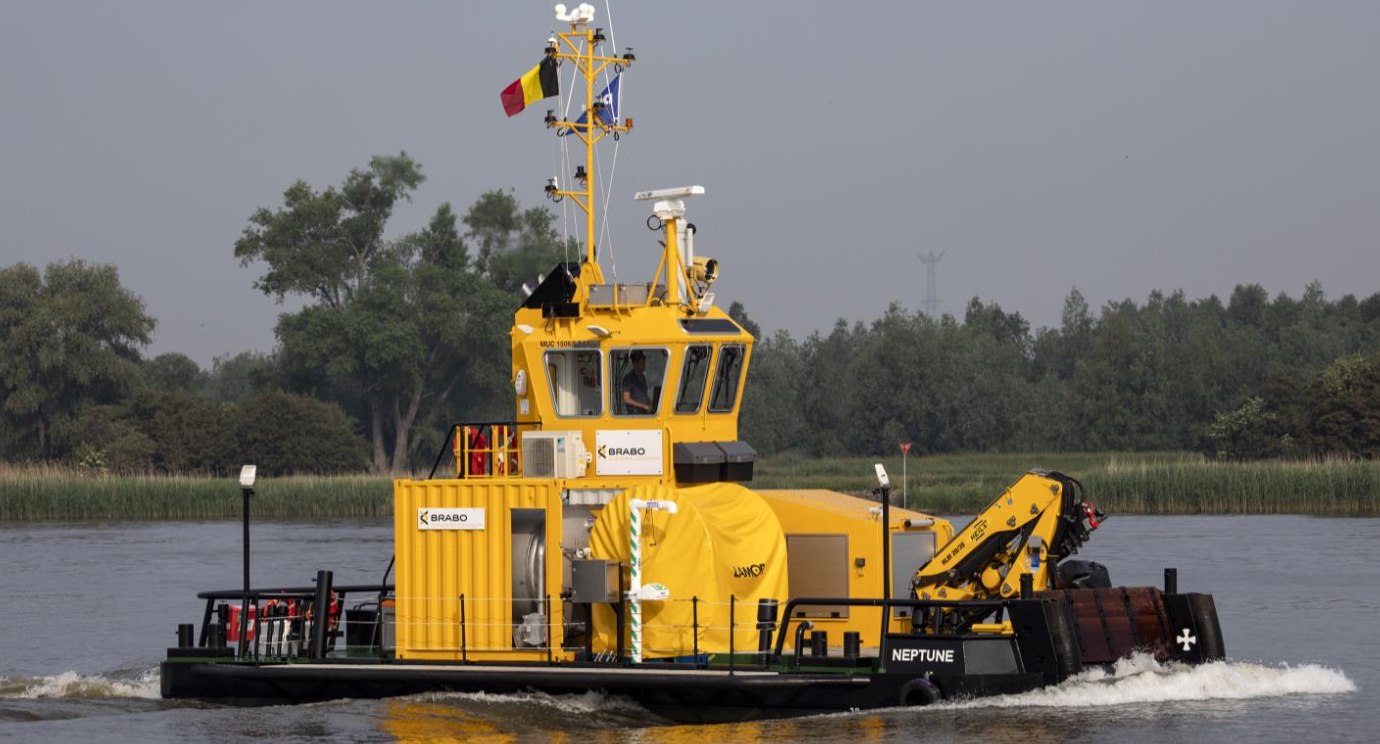

Multicat 1506 “Neptune”

Meer informatie

Delivery date

• 2021

Dimensions

• Lenght overall: 15.50m
• Beam overall (incl. tyres): 7.41m
• Beam moulded: 6m
• Depth molded: 2.25 m
• Draught 98% condition: 1.95m
• Deck area: 35 m2
• Deck load workdeck: 4 t/m2
• Deadweight: 22 ton

Tank Capacities

• Fuel oil: 7.9 m3
• Urea: 0.3 m3
• Fresh water: 3.2 m3
• Sludge: 0.3 m3
• Sewage: 1.3 m3
• Recovered waste: 27.7 m3

Performances

• Speed: 8.8 kn

Propulsion system

• Main engines: 2x Volvo Penta D13 Rating 1 continuous duty
• Total power: 2x 294 kW at 1800 rpm
• Gearboxes: 2x Twin Disc MG 5114-DC / 3.43:1
• Propulsion: 2x Promarin fixed pitch propellers in Optima nozzles, Ø 1000 mm
• Bow thruster: Hydrosta, Sider, 44 bkW

Electrical equipment

• Generator set: Caterpillar C4.4, 99 ekW, 124 kvA, 230/400 V

Deck lay-out

• Anchor: 1x HHP 75 kg
• Chain: 100 m short link, 13 mm U2
• Anchor winch: De rek & Horsman 14-1, hand operated
• Crane: Heila HLM 20-3S, 1.7 ton, 10,56 m

Secondary ship systems

• Fuel oil system: Duplex filters
• Bilge pump/FIFI pump: SIHI VW 20, 24 m3/hr at 14 mwg
• Internal firefighting system: STAT-X in engine room

Special equipment

• Oil pollution control systems: Gas detection system, Overpressure unit, Oil boom reel Lamor H2217 with 300m booms FOB750, Oil sweeping system, skimmers & recovery units, Grab, High pressure cleaner system 2x30l – 220bar + hot water unit & 1x107l – 220bar, Vacuüm pump 1600m3/u with vacuüm tank 6m3, Recovered waste tanks 2x 13,8m3, Fire monitor and 3 nozzle spraying system up to 12m.

Accommodation

The wheelhouse is completely insulated and finished with durable modern linings, acoustical Dampa ceiling, synthetic floor and is equipped with dashboard, time clock, settee, water tap, air-conditioning and heating. Windows are fitted in aluminum frames.

Nautical and communication equipment – GMDSS A1

• Searchlight: Den Haan 170 W 24 V
• Radar System: 1x JRC-typeJMA-611-7
• Magnetic compass: 1x Cassens & Plath
• GPS compass: 1x JRC type JLR-21
• Echo Sounder: 1x JRC-type JFE-380/25
• Intercom: 1x Phontech CIS3100
• VHF: 1x Sailor 6222
• 2nd VHF (MED): 1x COBHAM SAILOR RT 6210
• AIS: 1x JRC type JHS-183
• Navtex: 1x JRC type NCR 333
• CCTV: 1x Alhacam (G-004657)
• Hand Held VHF (MED): 2x SAILER type SP3520
