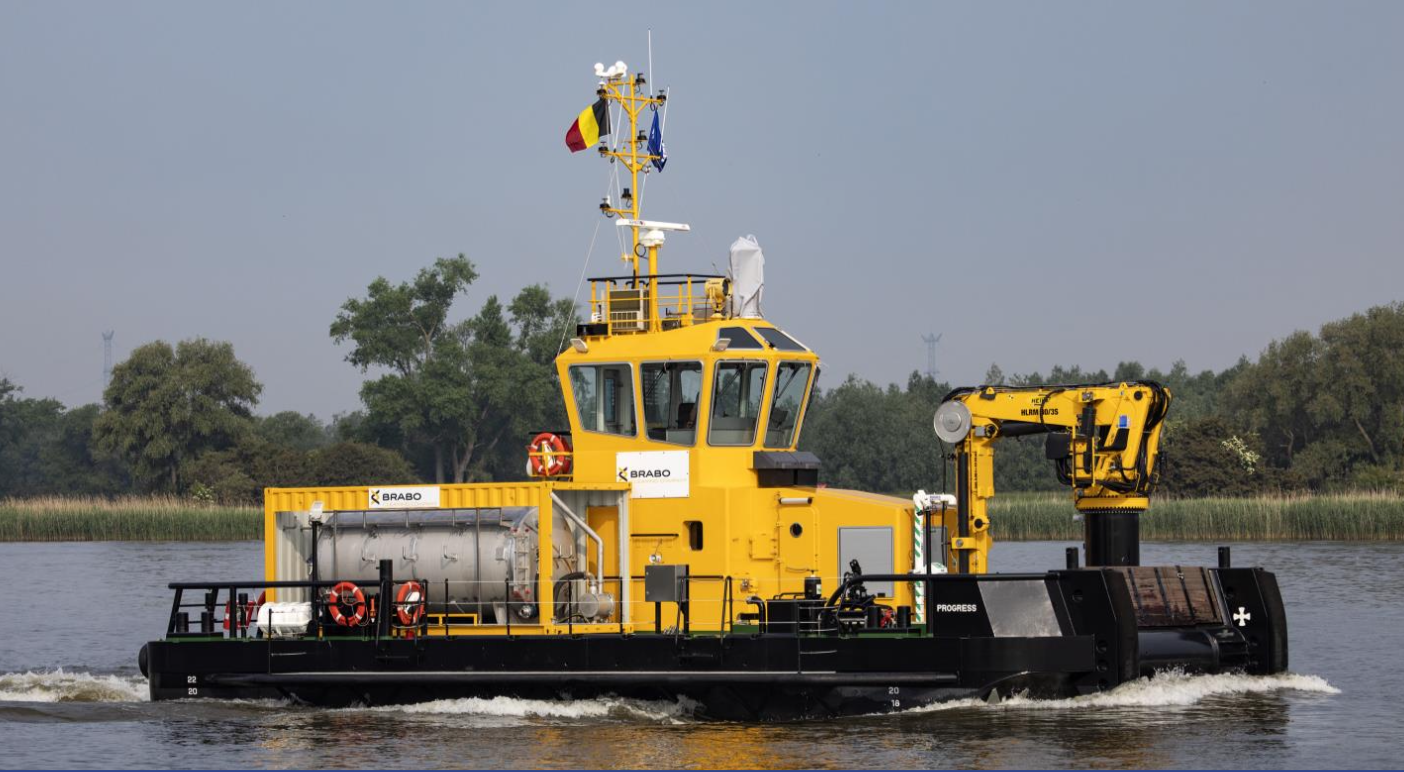

Multicat 1908 “Progress”

Meer informatie

Delivery date

• 2021

Dimensions

• Lenght overall: 18.91m
• Beam overall (incl. tyres): 9.40m
• Beam moulded: 8m
• Depth moulded: 2.75 m
• Draught 98% consumables: 2.10m
• Deck area: 50 m2
• Deck load workdeck: 5 t/m2

Tank Capacities

• Fuel oil: 7.5 m3
• Urea: 0.3 m3
• Fresh water: 1.1 m3
• Recovered waste: 27.8 m3
• Lubrication oil: 0.8 m3
• Dirty oil: 0.9 m3
• Bilge water: 0.8 m3
• Sewage: 0.9 m3

Performances

• Speed: 9.5 kn

Propulsion system

• Main engines: 2x Volvo Penta D13 Rating 2 heavy duty
• Total power: 2x441kW@1900rpm
• Gearboxes: 2x WAF 264L, 4.5:1
• Propulsion: 2x Promarin fixed pitch propellers in Optima nozzles, Ø 1350 mm
• Bow thruster: 1x Hydrosta, Sider, 44 bkW

Electrical equipment

• Generator set: 1x Caterpillar C4.4 NA 47.5 kVA, 38 ekW 50 Hz, 230/400
• Second generator set: 1x Caterpillar C4.4 NA 124 kVA, 99 ekW 50 Hz, 230/400

Deck lay-out

• Anchor: 1x HHP 105 kg + 1x HHP 48 kg (spare)
• Chain: 1x 100m, 16mm stud link
• Anchor winch: 1x EMCE W250 EBC, electric driven
• Crane: 1x Heila HLRM 80-3S, 5.9 ton at 12.33 m

Secondary ship systems

• Bilge / transfer pump: 1x Azcue-50/3B, 20 m3/hr
• Hydraulic Pump: Main engine driven hydraulic pump
• Sewage pump: 1x Libellula L1-3H
• Internal firefighting system: CO2 in engine room

Special equipment

• Oil pollution control systems: Gas detection system, Overpressure unit, Oil boom reel Lamor 2x H1722 and booms 2x 250m FOB750, Oil sweeping system, skimmers & recovery units, Debris grab, High pressure cleaner system 2x30l – 220bar + hot water unit & 1x107l – 220bar, Vacuüm pump 1600m3/u with vacuüm tank 12m3, Recovered waste tank 27.8m3, Fire monitor and 6 nozzle spraying system up to 19m

Accommodation

Air conditioned wheelhouse and day-room, pantry and sanitary space. Below main deck at portside and starboard a workshop/store is located.

Nautical and communication equipment – GMDSS A1

• Searchlight: 1x Pesch 500 W
• Radar System: 1x JRC-typeJMA-611-7
• Magnetic compass: 1x Cassens & Plath
• GPS compass: 1x JRC type JLR-21
• Echo Sounder: 1x JRC-type JFE-380/25
• Intercom: 1x Phontech CIS3100
• VHF: 1x Sailor 6222
• 2nd VHF (MED): 1x COBHAM SAILOR RT 6210
• AIS: 1x JRC type JHS-183
• Navtex: 1x JRC type NCR 333
• CCTV: 1x Alhacam (G-004657)
• Hand Held VHF (MED): 2x SAILER type SP3520
